Reference

Entry type reference

Complete option reference for each entry type. For the overview, see the Entry Types concept.

Type	Creates a managed custom property?
Float · Integer · Boolean · String · Array · Data-Block · Python	Yes
Display Link · Custom · Text · Operator Button	No

Slider and Use Soft Limits are mutually exclusive

For any numeric entry that offers both — Float, Integer, and numeric Float/ Integer arrays — Slider and Use Soft Limits cannot be active at the same time. Turning one on turns the other off.

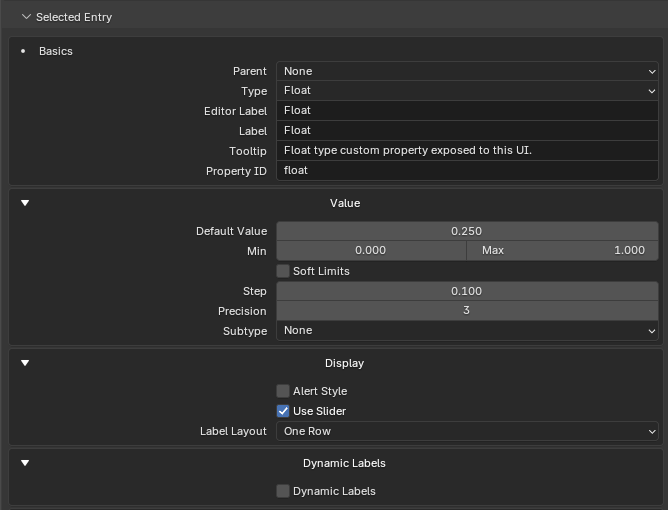

Float

Creates a floating-point managed custom property.

Value settings

Setting	Description
Default Value	Initial/default value when the property is created.
Min / Max	Hard bounds.
Use Soft Limits	Enables soft min/max fields. Mutually exclusive with Slider (see note above).
Soft Min / Soft Max	Soft UI bounds.
Step	UI increment.
Precision	Visible decimal precision.
Subtype	See below.

Subtypes: None, Pixel, Unsigned, Percentage, Factor, Angle, Time (Scene Relative), Time (Absolute), Distance, Camera Distance, Power, Temperature, Wavelength, Color Temperature, Frequency.

Display settings can include alert style, slider, label layout, dynamic labels, and storage override.

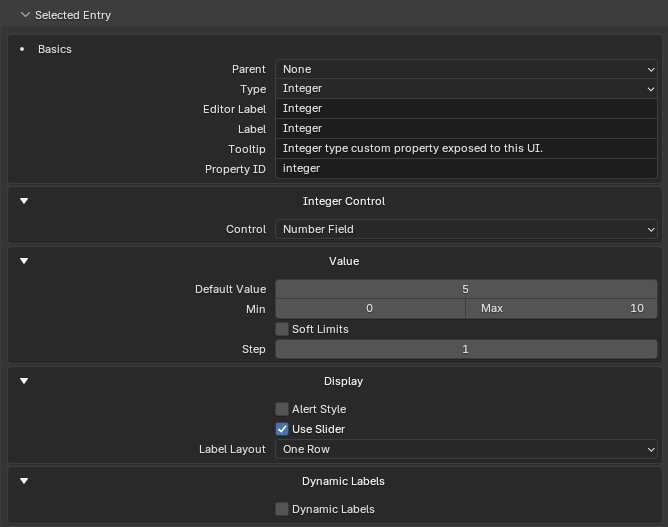

Integer

Creates an integer managed custom property.

Value settings: Default Value, Min / Max, Use Soft Limits, Soft Min / Soft Max, Step.

Choice modes hide the Value section

In Choice Dropdown or Choice Toggle control modes these numeric fields are hidden and the Value section is omitted — the ordered Choices list controls the stored integer directly. The list is zero-based: choice 0 stores 0, choice 1 stores 1, and so on.

Integer Control

Integer entries have an Integer Control section that picks the control style and holds any Choices rows.

Control style	What it draws
Number Field	A normal Blender integer input.
Choice Dropdown	A native Blender enum-style menu built from the Choices rows. Each row's label becomes a menu item; row order sets the zero-based stored value.
Choice Toggle	The same Choices drawn as exclusive boolean-style controls. Checkbox style shows one checked choice; Toggle Button style shows button toggles and can use custom on/off icons.

For Choice Toggle, a Toggle Layout chooses how the choices are arranged: One Row; One Row, Label Above; or Separate Rows.

Choices is a separate ordered list (shown outside Dynamic Labels):

• Add, remove, duplicate, and move rows to define the menu/toggle group.
• Row order controls the stored integer value (zero-based).
• Default Choice: which zero-based choice value is used when PropUI creates the managed integer property.
• Dynamic Labels stay independent and only affect the entry label. In choice modes they use the active Choices range, so ten choices allow dynamic-label comparison values from 0 through 9 regardless of the Number Field min/max.

Animating a choice integer. Blender's dropdown/toggle wrappers can't be keyframed directly, so PropUI can draw an extra native integer control beside a Choice Dropdown or Choice Toggle:

Setting	What it does
Animate Control	Off, Keyframe Field, or Number Field.
Keyframe Field	A small chrome-less native integer field. Hover and press I to keyframe, or right-click for Blender's property menu; it uses Blender's keyed-value colour feedback.
Number Field	A visible native integer field beside the choice control for direct editing, keyframing, and driver access.
Animate Width	Percentage of the row reserved for the animate control; the choice control uses the rest.

Display Links to a choice-backed integer don't draw the extra animate control — animate the original managed integer entry instead.

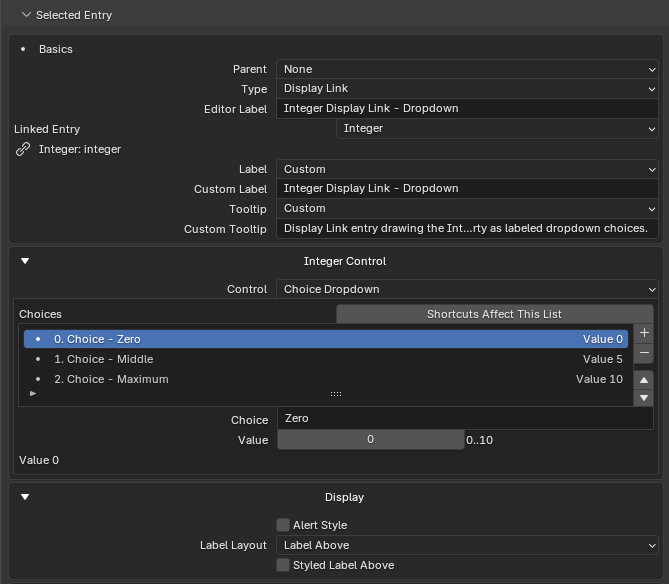

Choice Dropdown

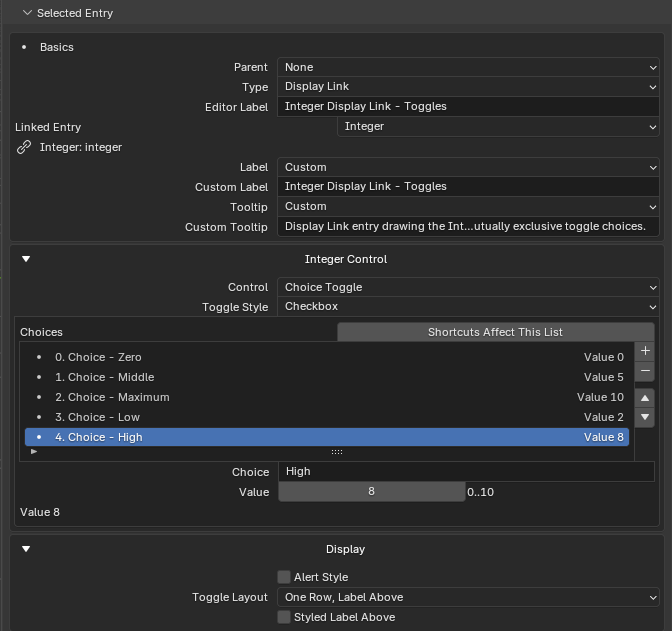

Choice Toggle

Display settings can include alert style, slider, label layout, dynamic labels, and storage override.

Boolean

Creates a boolean managed custom property.

Value settings: Default Value (on/off default).

Display settings

Setting	Description
Alert Style	Draw with Blender alert styling.
Style	Checkbox or Toggle Button.
Toggle Button icons	Separate optional On Icon and Off Icon pickers; the default is no icon.
Dynamic Labels	False/true labels, and labels driven by another entry.

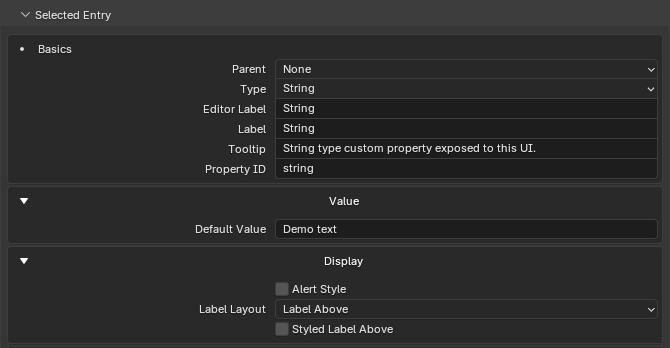

String

Creates a text managed custom property.

Value settings

Setting	Description
Default Value	Initial/default text when the property is created.

Display settings can include alert style, label layout, Dynamic Labels, and storage override. String Dynamic Labels and child conditions use exact text matching.

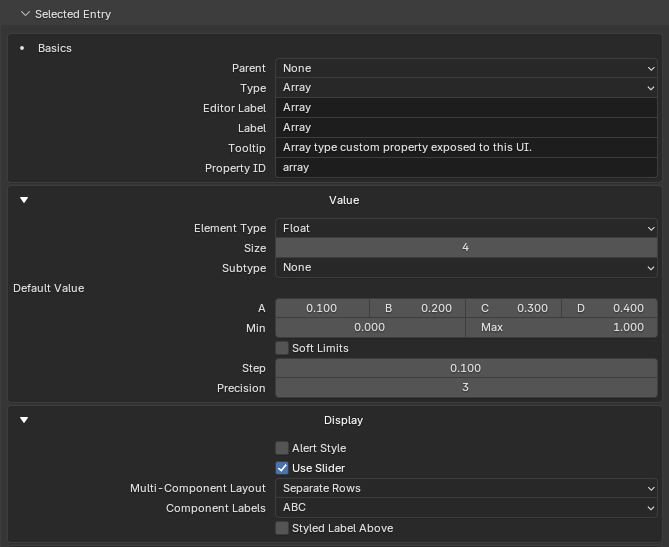

Array

Creates a typed managed array custom property.

Value settings

Setting	Description
Array Element Type	Float, Integer, or Boolean.
Array Size	1 to 32.
Subtype	Float arrays only (see below).
Default Value	The full array value.
Min/Max, soft limits, step, precision	For float/integer arrays where appropriate.

Float array subtypes: None, Linear Color, Gamma-Corrected Color, Translation, Direction, Velocity, Acceleration, Euler Angles, Quaternion Rotation, Axis-Angle, XYZ.

Display settings for arrays

Setting	Options
Multi-Component Layout	One Row; One Row, Label Above; or Separate Rows.
Draw Mode	Native Control or Component Fields (when the subtype supports native drawing).
Component Labels	Auto, No Labels, Numbered, XYZ, ABC, Greek, Degrees, or Custom.
Base	Base label style used by Custom component labels.
Per-component overrides	When Custom is selected.

Color and direction-style arrays may draw as native Blender controls unless Component Fields is chosen or required.

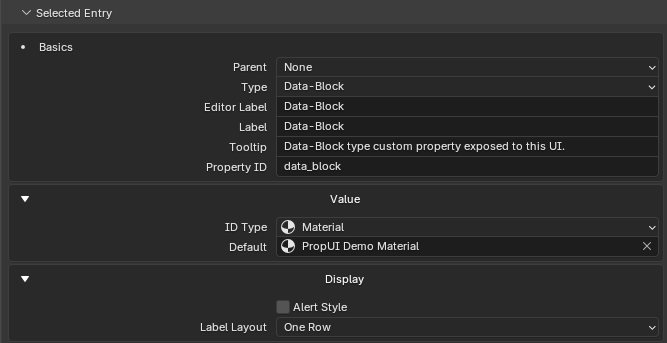

Data-Block

Creates a managed custom property that stores a Blender data-block reference.

Value settings

Setting	Description
ID Type	The accepted Blender data-block type — Object, Material, Image, Collection, Scene, Text, World, and so on.
Default	Optional data-block used when the property is created. Leave it empty to create an empty typed slot.

Generated panels draw Data-Block entries with Blender's native data-block picker. Apply preserves an existing empty value, or an existing value with the matching ID Type; otherwise it restores the configured default or an empty slot.

Display settings can include alert style, label layout, Dynamic Labels by Other Entry, and storage override. Inline labels automatically leave the picker as much of the row as possible while keeping the label readable.

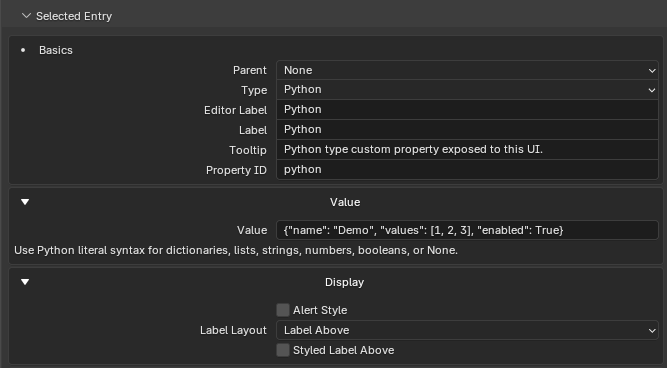

Python

Creates a managed custom property for Python / IDProperty values that don't fit the normal numeric, boolean, string, array, or data-block editors. Dictionaries and nested values are the typical use.

Value settings

Setting	Description
Value	A Python literal expression such as {}, {"mode": "paint", "level": 2}, ["a", "b"], 42, True, or None.

Generated panels draw Python entries as an Edit Value popup. The popup reads the current value as a Python literal, validates the edited text, and writes it back to the custom property if Blender accepts the value.

Display settings can include alert style, label layout, Dynamic Labels by Other Entry, and storage override. Python entries don't use self-driven Dynamic Labels because nested Python values have no single predictable comparison value.

Trust note

Python-value editing is meant for trusted project data. PropUI validates with Python literal syntax, but the generated panel itself is still Python code inside the .blend — the same trust boundary as Blender Text scripts, drivers, and add-ons.

 Display Link

Draws an existing managed PropUI entry (or a supported Custom entry) again. It does not create a new custom property.

Basics

Setting	Description
Linked Entry	The source entry to draw.
Label	Source Entry or Custom.
Custom Label	Used when Label is Custom; empty draws no label.
Tooltip	Source Entry or Custom.
Custom Tooltip	Used when Tooltip is Custom.

A Display Link can have independent display settings, dynamic labels, child conditions, and Generated Layout placement, while sharing the source value.

Multi-component sources

• Component Subset: draw only chosen components/channels.
• Component Subset list: each row chooses a 1-based component, with Add/Remove/Move controls.

Edge cases

• If no valid source is chosen, PropUI warns and hides source-dependent controls.
• Sources can be Float, Integer, Boolean, Array, or supported Custom entries.
• Component subset controls only appear for supported multi-component sources.
• Integer Display Links that use Choices edit each choice's linked source value as a bounded number: choice-backed sources clamp to 0..choice count − 1, while number-field sources clamp to the source's Min / Max.

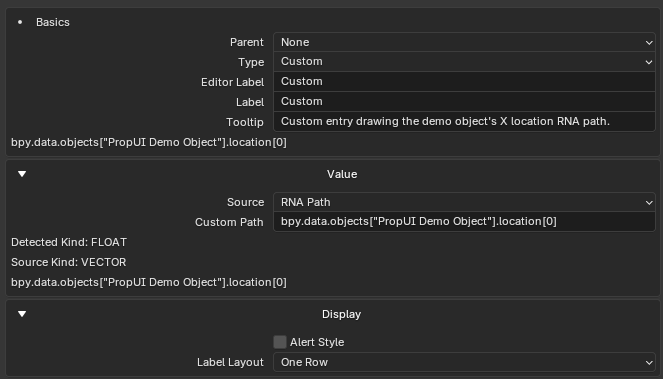

 Custom

Draws an existing Blender RNA property, or an internal generated-UI control. No managed storage is created.

Source modes: RNA Path, or Internal Generated UI Control.

RNA Path settings

Setting	Description
Custom Path	A full Blender Python/RNA path to a property.
Detected Kind	The value kind PropUI detected.
Source Kind	May appear when using one component of a larger value.
Inline errors	When the path cannot be resolved or drawn.

Internal controls

Setting	Description
Generated UI Enabled	Show or hide this generated UI.
Disable While Transforming	Disable during transforms.
Disable While Playback	Disable during animation playback.
Default Value	Default state for the internal boolean control.

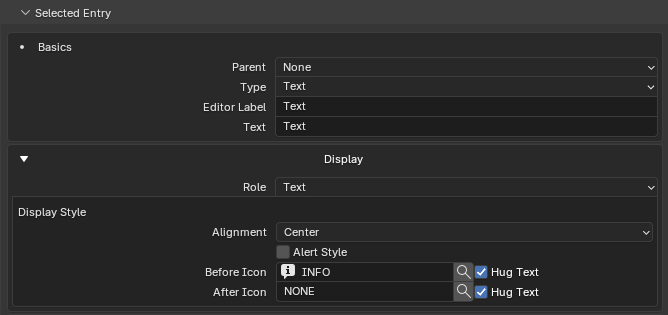

 Text

Draws non-interactive generated content. No managed storage.

Roles: Text (a label row), Divider (a divider line), Spacer (empty space).

Display style

Setting	Options
Alignment	Left, Center, Right.
Alert Style	Blender alert styling.
Before Icon	Optional icon before the text.
Hug Text (before)	Keep the before icon attached to the text.
After Icon	Optional icon after the text.
Hug Text (after)	Keep the after icon attached to the text.

Dynamic Text can replace text based on other entries, and can optionally override the role, icons, alignment, and alert styling per rule.

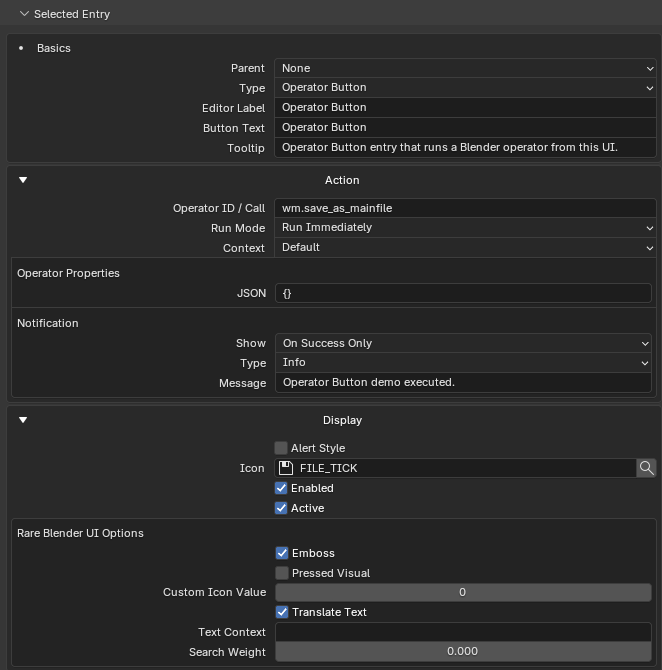

 Operator Button

Draws a button that runs a Blender operator. No managed storage.

Basics: Button Text, Description (tooltip).

Action settings

Setting	Description
Operator ID / Call	An operator id like object.select_all, or a bpy.ops...(...) call. PropUI can parse supported keyword args from a call.
Run Mode	Run Immediately, or Interactive / Popup.
Context	Advanced context scope when enabled.
Operator Properties (JSON)	JSON object of operator keyword arguments.
Parse errors	Appear inline for invalid operator properties.

Notification settings

Setting	Options
Show	No Notification, Always After Click, On Success Only, On Failure Only.
Type	Info, Warning, Error.
Message	The report message.

Display settings: Alert Style, Icon, operator_enabled, operator_active, plus rare Blender UI options (emboss, depress, icon value, translate, text context, search weight).
